Module parameters:

1. Size 27.6x26.6mm (1.09x1.05in), with positioning holes;

2. Equipped with 2.54mm pitch in-line connection interface or select patch;

3. Working voltage: 3.6V-5V (or use Micro USB to directly supply power);

4. Working baud rate: 9600 (can be modified by yourself);

5. With IPEX antenna interface, distribution of active ceramic antenna, can quickly locate;

6. The module comes with LED signal indication and data backup battery;

7. The onboard E2PROM can save parameter data;

8. The NEMA output format is compatible with NEO-6M.

Features:With high sensitivity, low power consumption, miniaturization, and extremely high tracking sensitivity, it greatly expands its positioning coverage. In places where ordinary GPS receiver modules cannot locate, such as under the narrow urban sky and dense jungle environment, GT-U7 can accurately locate. The module's high sensitivity, small static drift, low power consumption, light weight and small size

Applies to:Car navigation, drones, vehicle monitoring, shared bicycles, mobile phones, cameras and other positioning equipment

Package contains:

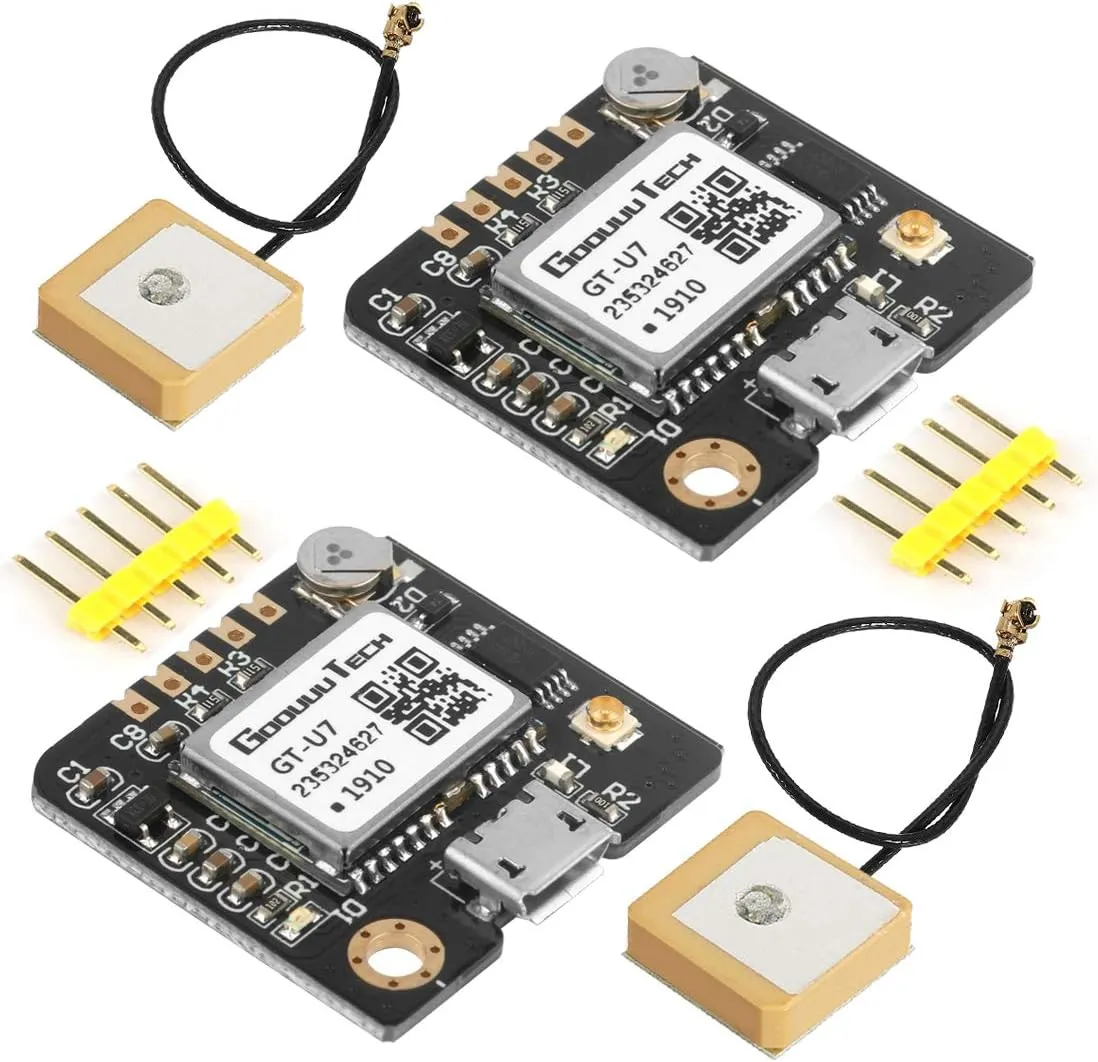

GT-U7 GPS module x1

IPX antenna x1

5pin 2.54mm pin x1

• Date First Available : November 8, 2020
• Manufacturer : Doudou
• Country of Origin : China
